45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines

Jiangsu Seton Industrial Technology Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers

    Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers
    • Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers
    • Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers
    • Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers
    • Buy cheap 45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines from wholesalers

    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines

    Ask Lasest Price
    Brand Name : Seton
    Model Number : Stainless Steel 420J2
    Certification : CE ISO
    Price : Can be discussed
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Piece/Pieces per Day
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines

    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines


    Description:


    Here is the manufacturing process for circular cutting blades:


    1,Material Selection

    • High-carbon alloy tool steel or high-speed steel are typically used.
    • The material needs to have high hardness, good wear resistance, and sufficient toughness.

    2,Forging and Shaping

    • The steel material is heated to high temperature and shaped through mechanical forging.
    • This initial forming step gives the blade its basic geometric shape and dimensions.

    3,Heat Treatment

    • The pre-formed blades undergo tempering, quenching, and other heat treatment processes.
    • This increases the blade's hardness and wear resistance while maintaining appropriate toughness.

    4,Precision Grinding

    • High-precision grinding machines are used to grind and finish the blade surface.
    • This final machining step ensures the blade's surface finish, dimensional accuracy, and sharpness.

    5,Coating Application

    • Special coatings, such as titanium-based or nitriding treatments, are applied to the blade surface.
    • This further enhances the blade's wear resistance, corrosion resistance, and cutting performance.

    6,Inspection and Packaging

    • The manufactured blades undergo strict testing of dimensions, hardness, and other specifications.
    • Qualified blades are then packaged with anti-rust protection before being made available for sale and use.

    Rotary Slitter Blade Specifications:


    Product NameRotary Cutter Blades
    MaterialStainless Steel 420J2
    Precision0.01-0.03mm
    HardnessHRC 60-68
    Outer Diameter45mm
    Thickness0.3mm
    Inner Diameter8mm
    Applicable IndustriesManufacturing Plant

    Here are the key considerations when using circular cutting blades for cutting composite materials:


    1,Blade Selection

    • Choose blades with specialized coatings or materials to improve cutting performance on composites.
    • If the composite contains metal components, select blades with carbide tips.

    2,Tool Adjustment

    • Adjust the blade speed and feed rate based on the hardness and layup of the composite material.
    • Multi-pass or stepwise cutting may be necessary to ensure clean, quality cuts.

    3,Workpiece Clamping

    • Composites are prone to deformation, so secure the workpiece firmly using appropriate fixtures.
    • Avoid any workpiece movement or vibration during the cutting process that could affect accuracy.

    4,Chip Management

    • Composite cutting generates various types of debris that need to be regularly cleared.
    • Some composite chips may have sharp edges, so handle with care for safety.

    5,Subsequent Processing

    • For certain multilayer composites, additional cutting or further machining may be required.
    • Ensure consistent quality and efficiency in any downstream processing steps.

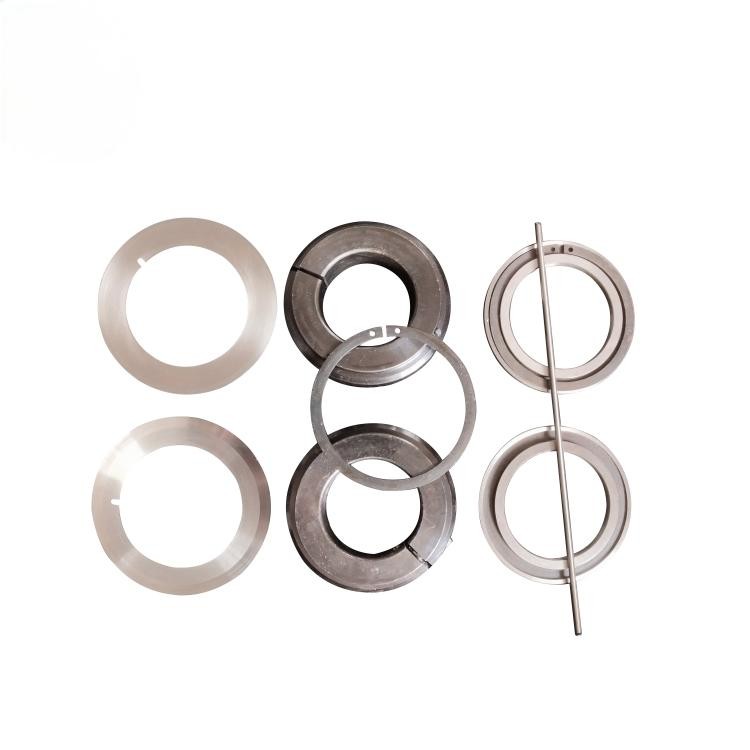

    Picture:


    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines


    Size:


    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines


    Applications:


    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines


    Our Factory:


    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines


    Packing & Delivery:


    45x8x0.3Mm Stainless Steel 420J2 Rotary Cutter Blades For Metal Cutting Lines
